Documentation of TRACK0 0.1

Deutsche Version

	Top
		Description of Program
			Assumptions
			Installation/Deinstallation
			Command Line Parameter
				Definitions of Actions
					Data in the Command Line
				Options
		Management of Track Zero
		Frequently asked Questions
		About TRACK0
			Shareware hints
			Order
			History

	Top
		Description of Program
		Assumptions
		Installation/Deinstallation
		Command Line Parameter

Further possibilities of using TRACK0 are:

• You can fill any sector from track 0 with a specific number - this means deleting these sectors. If sector 1 is filled, the partition table and the master boot record are away (some needed to do this for installing a new Redmond operation system).
• You can write sectors from track 0 to a file to take precautions against infection with computer viruses or deletion of main partition table (see FAQ: Backup MBR/Partition table).
• If you want to have a lot of hard disk partitioned in the same way - but without extended partitions -, you can build an image of sector one and simply copy it to the other hard disks. This meight be of interest for system builders or administrators of teaching rooms.

	Top
		Description of Program
		Assumptions

• This program requires an computer with at least 80286 CPU and a NPU (numerical co-processor). If you need a version for an older CPU, please EMail.
• The operating system must be DOS (tested with DOS7.x of Win9x). Reading of data works fine in a DOS window, but writing does not. If you really need writing in a DOS window, please drop me an EMail.
• DOS memory needed: about 100 kB plus the amount of data to write/read.
• TRACK0 only works with media accessable by INT13h and only with the first track of it.

	Top
		Description of Program
		Installation/Deinstallation

Copy the program files in a directory you like. :-)

Because of safety reasons you should keep the necessary program files together with the backup of track 0, sector 1 on a write protected DOS-bootable disk.

Files of Program

File Name	Description
TRACK0.EXE	Work statements in i80286-language (the program itself :-)
TRACK0.INI	Configurations in text format for language and country file. The register code will also be put here. This file will be created in the program directory by TRACK0 at first start.
TRACK0ll.NLS	All language dependent strings are kept in this file.
STATE_cc.NLS	Files with county information.
TRACK0ll.HTM	Language dependent documentation of program, (compacted) HTML format.
TRACK0.JS	Language independent Javascript for the HTML documentation.
TRACK0ll.GIF	Language dependent image for the HTML documentation.
*.GIF	Language independent images for the HTML documentation.
T0REGll.TXT	Language dependent order form. May be deleted after registration. ;-)
Legend:
ll	2-character-language-code according ISO 639.
cc	2-character-country-code according ISO 3166 (or ftp://ftp.ripe.net/iso3166-countrycodes)
	If you are short on space, all above mentioned files with one of these codes in their names can be deleted - except the ones with the desired language and country code.

To deinstall TRACK0 simply delete all files of the project.

	Top
		Description of Program
			Command Line Parameter
			Definitions of Actions
			Options

First of all some conventions about notation:

• necessary parameters are surrounded by <>, optional ones by [] and sets by {}
• the symbol | is used for an OR-combination
• words in Italic font are understood to be symbolic terms

TRACK0 [options] [/action={backup|restore|get|put|delete|show}] [/trans={filename|ERRORLEVEL|"string"}]

also available with short hand parameters:

TRACK0 [options] [/a={b|r|g|p|d|s}] [/t={filename|ERRORLEVEL|"string"}]

• The action of the program is determined by the parameter /ACTION, which can be set to one of the values BACKUP, RESTORE, GET, PUT, DELETE or SHOW.

  If data has to be transported, the parameter /TRANS= has to be set to the source or the destination:

  • If the data is read from the first track (/ACTION=GET), you have to put /TRANS= to the destination of the data. This meight be either a file which name has to follow immediately: /TRANS=filename.
    Or the DOS-errorlevel can be set to any data byte, where the string ERRORLEVEL has to follow the parameter /TRANS=.
  • If data should be written to the first track (/ACTION=PUT), the data may be taken from a file. In this case the name of the already existing file must follow the parameter /TRANS=.
    Instead of reading the data from a file you can put the data into the command line with quotation marks around it ("string"). Special chars can be defined there also.
• The short hand parameters are case sensitive, the long one are not.
• The order of arguments doesn't matter; if you put the data into the command line and problems occur, you should put the argument TRANS="string" to the end.
• Some arguments require an integer number with the following conventions:

  number={<o>Octal number|[z]Decimal number|<x>Hexadecimal number|<w>Dual number}

  number can be given as an octal, decimal, hexadecimal or dual number. If the number isn't decimal, the base of the number must be determinated by a leading character: o=octal, x=hexadecimal, w=dual, z=decimal.
  Thousand separators or fractions are not allowed.
  The smallest number is zero (0).
  Examples:

  12	12 as decimal number (equal to xC equal to o14 equal to w1100)
  o123	123 as octal number (equal to z83 equal to x53 equal to w1010011)
  z123	123 as decimal number (equal to o173 equal to x7B equal to w1111011)
  x3c	3c as hexadecimal number (equal to o74 equal to z60 equal to w111100)
  w100101	100101 as dual number (equal to o45 equal to z37 equal to x25)

  The parsing of the number will finish if the capacity of the variable is exhausted. For example the number 1234567890 fills five variables of type Byte 123, 45, 67, 89, 0, or three of type integer (12345, 6789, 0).

  int=number

  integer is a sign-less number of 16 Bit. The maximum value is 65535.

  byte=number

  Like integer, but the maximum value is only 255.

  sector=number

  Like integer, but the number must be between 1 and 63.

  sectorrange=Beginsector-Endsector

  Range of sectors including Beginsector and Endsector. Beginsector don't have to be less than Endsector. Example: 1-63. White characters are not allowed here.

  sectorlist=<Sector|Sectorrange>[,Sector|Sectorrange][...]

  List of secors or sector ranges, separeted by comma. Example: 10-15,2,4-10,5,50-12
  The list is processed from left to right. On multiple occurances of sectors only the first occurance is taken.

	Top
		Description of Program
			Command Line Parameter
				Definitions of Actions
				Data in the Command Line

The actions BACKUP and RESTORE are designed only to protect you against data loss.

/ACTION=BACKUP </trans=filename> [/Batch] [/Verbose] [/Range] [/Disk]

Creates a backup of that area of data TRACK0 usually uses: first hard disk, track zero, head zero, all sectors excluding the first (2 up to the maximum of 63). TRANS has to be set to a file name. If this file exist and the parameter /BATCH is not set, you will be prompted for overwriting it.

Example: TRACK0 /ACTION=BACKUP /TRANS=a:\backup\hdd0.dat would write the content of track zero, head zero, sector two until the maximum available sector number into the file named "a:\backup\hdd0.dat".

Because of securety reasons you should do this action first of all. If possible, put this file together with TRACK0 on a bootable DOS disk.

/ACTION=RESTORE </trans=filename> [/Batch] [/Verbose] [/Range] [/Disk]

Does the opposite of BACKUP: Writes the content of a file (a backup, I hope) into that area of the disk, TRACK0 usally uses (first hard disk, track zero, head zero, all sectors excluding the first). TRANS have to be set to the name of an existing file. If the size of the file does not match the size of area the file is to be written to, the program will abort.

If you don't set the option /BATCH you will be asked to continue.

Important: If you suppress the defaults of the program by setting /RANGE or /DISK, you may loose the MBR as well as the partition table and all your hard disk data in consequence. Please use these parameters only, if you know what you are doing!

/ACTION=SHOW [/Disk]

Shows information about occupied, empty and sectors that are used by TRACK0. Default.

Example for the screen output with the parameter /ACTION=show applied to a disk TRACK0 has never written data to

Track0 v0.0, (c) 1997-2000 by MSDatec ------------------------------------------------------- registered for Peter Mustermann summary of track 0 of disk 128: 63 sectors total 0 sectors used by TRACK0 46 sectors possible free: 18-63 46 sectors available for data (22,754 bytes) MBR: signature ok

Example for the screen output with the parameter /ACTION=show applied to a disk TRACK0 has already written data to

Track0 v0.0, (c) 1997-2000 by MSDatec ------------------------------------------------------- registered for Peter Mustermann summary of track 0 of disk 128: 63 sectors total 7 sectors used by TRACK0: 10,13-18 3,041 bytes stored user data stored with TRACK0 version 0 first write at 08/17/00 09:05:42 am last write at 09/27/00 10:53:50 pm 6 sectors possible free: 4-9 13 sectors available for data (6,419 Bytes) MBR: signature ok

/ACTION=GET </trans={filename|ERRORLEVEL}> [/Index] [/Errorcode] [/Batch] [/Verbose] [/Disk]

Reads previous written data from track zero, head zero and puts them to TRANS. TRANS may be either the name of a file (filename) the data are to be written to.

Example: TRACK0 /ACTION=GET /TRANS=f:\pc\serial.txt would write the previous written data (first hard disk, track zero, head zero) into the file f:\pc\serial.txt.

Or TRANS may have the value ERRORLEVEL. The DOS-errorlevel is put to the first byte of the previous written data then. If you want another byte than the first, use option /INDEX.

Examples: TRACK0 /ACTION=GET /TRANS=ERRORLEVEL The DOS-errorlevel would be put to the first data byte of the previous written data (first hard disk drive, track zero, head zero).

TRACK0 /ACTION=GET /TRANS=ERRORLEVEL /INDEX=123 The DOS-errorlevel would be put to the value of the 124th byte.

In order to distinguish the read value from an error you can determinate which DOS-errorlevel should be set on an error by using option ERRORCODE.

Example: TRACK0 /ACTION=GET /TRANS=ERRORLEVEL /INDEX=123 /ERRORCODE=99 The DOS-errorlevel will be set to the value of the 124th data byte, if no error occour. In case of an error the dos-errorlevel will be set to 99.

/ACTION=PUT </trans={filename|"string"}> [/Batch] [/Disk] [/Fill] [/Verbose]

Fetch the data from TRANS and write them into free sectors of track zero, head zero. If TRACK0 has written data earlier there, they will be wiped with FILL first.
If the amout of data exceeds the available space, no changes are made and the program terminates with an error.

If TRANS is a reference to an existing file (filename), the data will be fetched from there. On the other hand you may specify the data on the command line ("string"), putting them in doube quotes.

Example: TRACK0 /Action=put /Trans="serial: 12345678" The data serial: 12345678 would be written to free sectors.

You will find details on this in Data in the command line.

/ACTION=DELETE [/FILL] [/Batch] [/Verbose] [/Range] [/Disk]

Previous written data are deleted by filling them with zeros. You may specify another fill value with FILL.

Attention: You may loose your partition table by using the parameter RANGE with odd values.

	Top
		Description of Program
			Command Line Parameter
				Definitions of Actions
				Data in the Command Line

If you put data into the command line, you must put double quotes around.
The program can handle with 255 characters, but the PSP (Program Prefix Segment) has space for 127 characters only. If the command line interpreter (e.g. COMMAND.COM) supports 127 characters as well, you can use 127 characters minus Lenth of Program Name minus 1 space minus 2 double quotes for data.

For the data in this string following rules apply:

• The escape (\) prevents the following char from interpretation, exept the following:

  String	Value (dezimal)	Interpretation to
  \\	92	the escape itself Example: »C:\\WIN95« is interpreted as »C:\WIN95«.
  \a	7	alert
  \b	8	backspace
  \e	92	the escape itself
  \f	12	page feed
  \n	10	line feed
  \r	13	carriage return
  \t	9	horicontal tab
  \v	11	vertical tab

• Double quotes (") must be leaded by escape (\)

  Example: »A \"word\" in double quotes« is interpreded as »A "word" in double quotes«.

• Any characters can be defined by using its value of the caracter table. The description of the number base can be found at previous place.

  Example: »\065\x7E« is interpreted as »A~«.

If environment variables are given in the string, the will be expanded (even if the variable is null).

Example: »abcde%test%xyz« would be expanded to »abcde123xyz« if the environment variable has the value 123. If the variable had been empty, the text were expanded to »abcdexyz«.

	Top
		Description of Program
			Command Line Parameter
			Options

/BATCH

/b

Surpresses confirmation questions. No default.

/DISK=Byte

/d=Byte

Number of drive according BIOS convention:

0	first floppy disk drive
1	second floppy disk drive
...
128	first hard disk drive
129	second hard disk drive
...

If /Disk is not given, 128 will be used - this is drive C: in most cases.

/ERRORCODE=byte

/e=byte

Only senseful with ACTION=GET and TRANS=ERRORLEVEL. If an error occours, the given ERRORCODE is set.
If you know the range of the data byte to be read (e.g. between 1 and 100), you can set ERRORCODE to 101 to find out an error condition.

If ERRORCODE is not set, the program always returns 255 on any error.

/FILL=byte

/f=byte

Only possible with ACTION=DELETE or ACTION=PUT. All sectors used by TRACK0 are filled with the given value. If FILL is not set, zero is used.

/INDEX=integer

/i=integer

Only sensefull with ACTION=GET and TRANS=ERRORLEVEL. You can determinate the index of the data byte to be retureed as DOS errorlevel. The count starts with zero.
If /INDEX is not set, the first data byte is returned.
The maximum senseful value is 63 sectors * 512 bytes/sector = 32.256 bytes.

/RANGE=Sectorlist

/r=Sectorlist

List of sectors to be treated. Only possible with BACKUP, RESTORE and DELETE. Usually TRACK0 finds the sectors itself (see Description of Program).
Attention: Use this feature only if you know what you are doing. Perhaps you may loose the partition table and the MBR, what leads to an unbootable hard disk and unaccessable disk data.

/VERBOSE

/v

Verbose mode. No default.

	Top
	Management of Track Zero

Usually the first step boot loader (Master Boot Record, short MBR) and the partition table are stored in the first sector in head zero in track zero of the first hard disk, and all other sectors of this track are unused (except a boot manager or similar, which will be detected by TRACK0). These sectors are scanned for free sectors, and if there are some, the program writes its identification and any data from a file or the command line up to 495 bytes per free sector.

It does not matter which file system (FAT, VFAT, VFAT32, HPFS, HPFS386, NTFS, EXT2, ...) is used on other parts of the hard disk or even if there is another file system.

A sector may be free if it consists only of the same fill byte. If this sector is not used by other programs, an interaction of TRACK0 with other data or programs will probably not happen. To keep the risk of data loss small, TRACK0 uses free sectors from upper (mostly 63) down to lower values (lowest is 2).

Please note that there is no convention to distiguish used from unused sectors. It may happen that programs working near to the system (operation system, boot manager, BIOS-extentions) overwrite data written by TRACK0. Before you start such kind of software, you should read the TRACK0-data to a file, and afterwords restore your data.

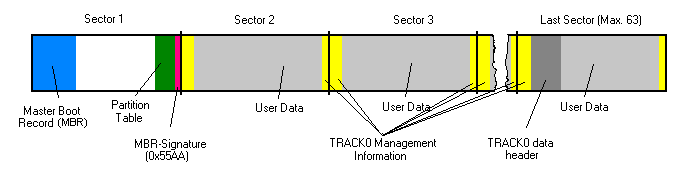

The head zero, track zero in linear model:

Composition of the first Sector

Index	Length	Description
0	variabel	Master-Boot-Record (MBR)
446	64	Partition Table
510	2	Signature '55AAh'

Sum: 512 Byte

The first sector ist not treated by TRACK0 usually. TRACK0 uses the second and following sectors. Sectors used by TRACK0 are constructed as follow:

Data Composition of a TRACK0 Sector

Index	Length	Description
0	14	Magic Number for Identification
14	1	Number of the next used sector. The last sector takes it own number.
15	495	User Data
510	2	16 bit check sum (CRC) over the previous 510 bytes

Sum: 512 Bytes

The user data are spread over the free sectors. In order to keep information about the user data, a administrative header is added and put into the sector with the highest number.
The header consists of following:

Composition of the User Data Header

Index	Length	Description
0	1	Total length of the header including the tailing check sum.
1	1	Version infos
2	4	Date and time of first write (packed format). This time is set only at the first writing to a disk.
6	4	Date and time of last write (packed format).
10	2	Amount of user data in bytes
12	2	Check sum (CRC16) for the user data
14	2	Check sum (CRC16) for the previous data (check for the head itself)

Sum: 16 Bytes

So the first sector used by TRACK0 can take 495-16 = 479 bytes user data only (all other can take 495 Bytes).

Limitations:

• The sector size of the media must be 512 bytes.
• TRACK0 can handle with the maximum of 255 sectors. TRACK0 can only read and write the amount of 65520 bytes (except the action BACKUP and RESTORE). With 512 Bytes/sector TRACK0 can handle only with 127 sectors. Because the BIOS-Int 0x13 supports only 6 Bits for the value of the sector, the maximum count of sectors is 64.

	Top
	Frequently asked Questions

Other Media than Hard Disk Drives

If this medium has a partition table, TRACK0 should work proper on this medium.
If this medium does not have a partition table, probably parts of the file system will be destroyed. For example on floppy disks with FAT file system unused parts of File Allocation Table are overwritten, but the files on the floppy are still accessable - mostly. Back up your data before using other media than hard disk drives.

No Space left on Medium

Perhaps the data in sector 2-63 is garbage, perhaps not. Some viruses, boot manager or BIOS extensions are known to write data into this area. Ask the manufacturer of the software how many sectors it uses. If you are sure not having such kind of software only sector 1 is used on your system.

Proceed as follows to delete sectors with "data garbage" (on own risk):

1. Make a backup of the media.
2. Try to find out how many sectors are used by another software. In most cases only sector 1 is used for the MBR and partition table.
3. Backup at least the area of track zero which seems to be unused and put it on a bootable DOS disk which should also contain the files of TRACK0.
4. Now boot the system from the disk and validate that TRACK0 can access the medium.
5. Delete the sectors that seem to be unused.
6. Boot the system from the usual medium and have a look at the boot messages. If you get error messages reboot as soon as possible from the disk and restore the data.
   But perhaps another program has already written data to areas outside track zero...

Error message "Invalid Header CRC"

Either the TRACK0 header for user data or the user data itself have been damaged. This may happen, if you use software which also stores data in track zero (boot manager, viruses, etc.) TRACK0 does not contain routines to reconstruct the data in case of damage. You may restore parts of the stored data: Uses ACTION=BACKUP to create a file which contains the sectors in question and use a hex editor to examinate it. Instead, you can use an disk editor to examinate the data on the disk directly.

Lost Partition Table

Only, if you made a backup of the sector one earlier and only if the main partition table is lost. In this case:

1. Find out the number of sectors: track0.exe /action=show. On modern hard disks this value is 63 probably.
2. Write the earlier written sector image back to the medium: track0.exe /action=restore /trans=filename /Range=1-63. Replace the number '63' by the current value of your system.
3. Restart the system.

Backup the MBR and Partition Table

TRACK0 cannot make a copy of the partition table but an image of the sector which contains it and the MBR:

1. Create a bootable DOS disk and put the necessary parts of TRACK0 on it. Perhaps you also want to put the description of restoring in simple text format on it.
2. Create the backup: track0.exe /action=backup /trans=A:\PT.DAT /Range=1-1. Now there should be a file named PT.DAT, 512 bytes on your disk. This file contains an image of the first sector.
3. Write protect the disk and store it on a save place. Keep in mind to date it up if you change partition data, operating system or similar.

Restore the MBR and Partition Table

Boot from the backup disk. Use track0.exe /action=restore /trans=A:\PT.DAT /Range=1-1 to write the earlier written image back to the first hard disk. Be sure that the image on the disk contains the partition data you want to get.

Language and Country Settings

The program directory of TRACK0 contains the file TRACK0.INI. Open this file with a text editor and replace the file names of LanguageFile and CountryFile by the ones you want to use.
Example: The current locale may be "Deutsch (Deutschland)". The entries of TRACK0.INI are as follow:

LanguageFile=TRACK0DE.NLS CountryFile=STATE_DE.NLS

If you want to use the locate "English (United Kingdom)", you have to change the entries in TRACK0.INI to the following:

LanguageFile=TRACK0EN.NLS CountryFile=STATE_GB.NLS

The meaning of the names is mentioned at Installation/Deinstallation.

Another way than editing the entries is to delete TRACK0.INI - after the next start TRACK0 will ask you for your desired country and language settings and create a corresponding initialisation file.

	Top
		About TRACK0
		Shareware hints
		Order
		History

Author of Program

Wer und Was Komplettsysteme und Komponenten Entwicklung, Produktion, Installation Systembetreuung Seminare

Matthias Stolte Datentechnik (MSDatec) Systembetreuung, Seminare, EDV- und Telekommunikationslösungen Kommunikationsverbindungen: S-Mail: 33613 Bielefeld, Albert-Schweitzer-Straße 4, Germany Telefon: +49-521-88 00 56 oder +49-177-88 00 56-0 Telefax: +49-521-88 00 59 Eurofiletransfer: +49-521-88 00 59 BBS (analog und ISDN): +49-521-8 94 98 40 Web: http://www.msdatec.de/ E-Mail:

Newest version

Limitations

	Top
		About TRACK0
			Shareware hints

This Software is Shareware.

This means you can test the software and decide if it satisfies your demands before buying it. After 30 days - counted from the first start - you have to licence the software or you may not use it anymore.

Number of licences

n²-licence

Number of licences	simultaneous usable
1	1
2	4
3	9
4	16
etc.

Please note that the software is licenced like a book. You can install it on different machines and it can be used by different persons, but not simultaneously. If the software is used multiple simultaneously, you need multiple licences. The number of necessary licences follows the n²-licence, that means, the number of software copies you can use simultaneously is the square of the number of licences (see table).

May I give the software to others?

You may give it to others, if you didn't change anything in the distribution. Please keep the name of the distribution if you give it to others.
Of course you are not allowed to give the register code to others except you don't use it anymore.

What is the difference between the unregistered and the registered version?

The registered version does not wait for a key press at start, which prevents batch modus.
Furthermore you get technical support concerning this program as well as two free updates (for example if you register version 3 you can use the versions 4 and 5, too).

How can I register?

See next page. :-)

	Top
		About TRACK0
		Order

How to register the shareware version
The waiting for a key press is surpressed in the registered version. The cost of one licence is 15.00 Euro. You can transfer it to my account or you can send me a letter with a cheque or bank notes. Please don't forget to mention the name of the program and your E-Mail- or letter-address. Sometimes I get payments, where I can't see which program is concerned nor where I have to send the code.

If you have done so you will get the register code by E-Mail or letter. Instructions how to use it will be included there.

You can send me the following order as an E-Mail. If you have activated java script in your browser, the sums are calculated automagically.
(If the order isn't possible with this formular {e.g. the internet explorer can't do this}, you can send me the text formular T0RegEN.txt with E-Mail, fax or letter.)

	Top
		About TRACK0
		History

Version 0.0:

Release: 11/15/2000, Time stamp 00:00
Size of TRACK0.EXE: 74,496 Bytes
MD5-sum of TRACK0.EXE: 05604be5d71decab7069fb9b3a2d6bc0

Version 0.1:

Release: 08/11/2001, Time stamp 00:10
Size of TRACK0.EXE: 74,496 Bytes
MD5-sum of TRACK0.EXE: 05604be5d71decab7069fb9b3a2d6bc0
Bugfixes: none
Changes: Documentation update

Last update: 08/11/2001
